In this section, we explore the transient response of a series RC circuit by
applying voltage step and capturing the voltage variation across the
capacitor.
Wiring Diagram

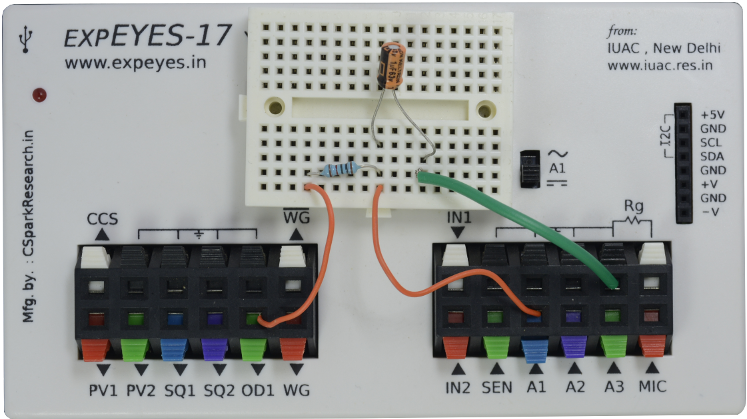

Photograph of the experimental setup.
The voltage steps are generated on OD1 by clicking on the buttons on the
GUI. The observed waveforms are shown below, showing the voltage variation
across a capacitor while charging and discharging through a resistor.

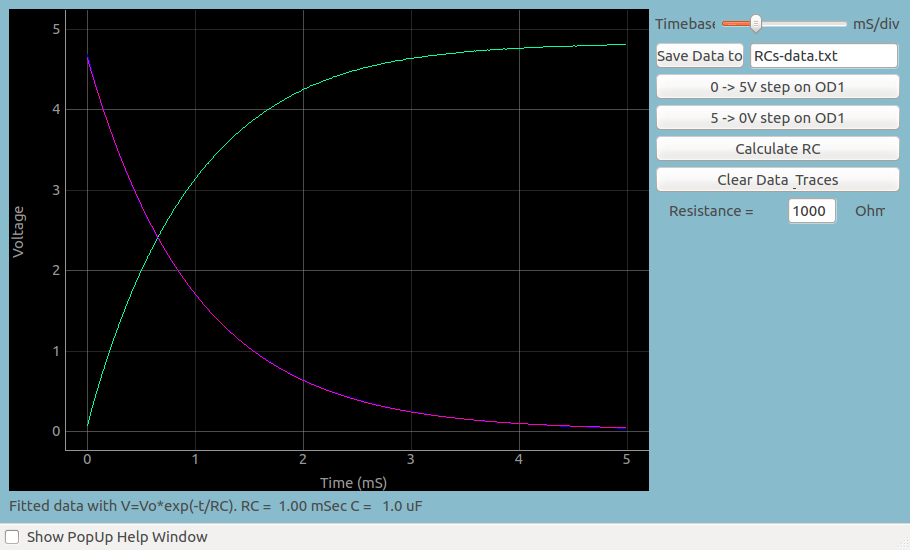

Screen shot of the voltage across a capacitor during charging and
discharging
