7408 Quad 2-Input AND

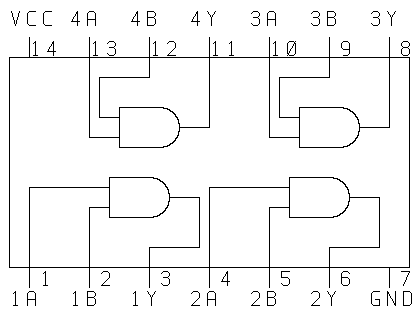

Pin Arrangement

Electrical Characteristics

Propagation Delay

Input	Output	N	LS	ALS	ALS 1000	F	S	AS	AS 1000	HC	HCT	Unit [max]
-	H->L	27	15	14	9	6.6	7	5.5	5	30	-	nS
	L->H	19	20	10	9	6.3	7.5	5.5	5	30	-	nS




Input Characteristics

		N	LS	ALS	ALS 1000	F	S	AS	AS 1000	Unit
All inputs	High	40	20	20	20	20	50	20	20	uA
	Low	1.6	0.4	0.1	0.1	0.6	2	0.5	0.5	mA




Output Characteristics

		N	LS	ALS	ALS 1000	F	S	AS	AS 1000	HC	HCT	Unit
All outputs	High	0.8	0.4	0.4	2.6	1	1	2	48	4	-	mA
	Low	16	8	8	24	20	20	20	48	4	-	mA

Reference

7411, 7421
